Tapping into ETW

Intro

  • Parent-child relationships can show if a normal executable such as spools.exe is spawning a child like whoami.exe
  • An attacker can do this with PID Spoofing
  • To replicate the attack, perform the following in PowerShell
powershell -ep bypass

Import-Module .\psgetsys.ps1

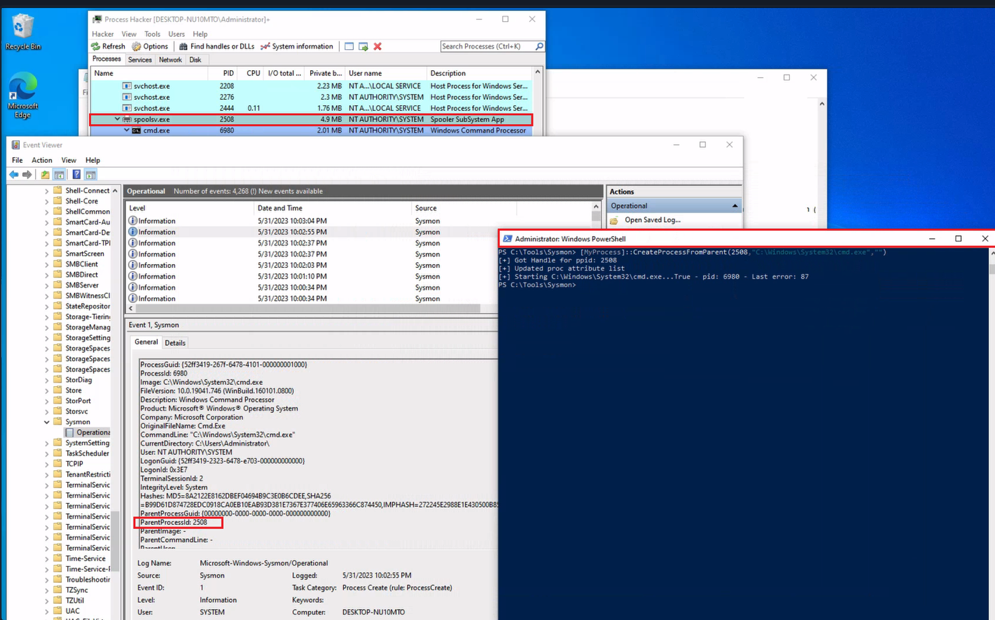

[MyProcess]::CreateProcessFromParent([Process ID of spoolsv.exe],"C:\Windows\System32\cmd.exe","")
  • This shows that spools.exe created cmd.exe when in reality it was a powershell process

SilkEWT

  • collects data from Microsoft-Windows-Kernel-Process provider and gives us more details as well as more accurate information regarding the true parent-child relationship in processes
  • if provider is unkown, idneitfy with:
logman.exe query providers | findstr "Process"
  • then simulate the same PID Spoof attack as earlier
  • then run the following in CMD wherever SilkETW is downloaded:

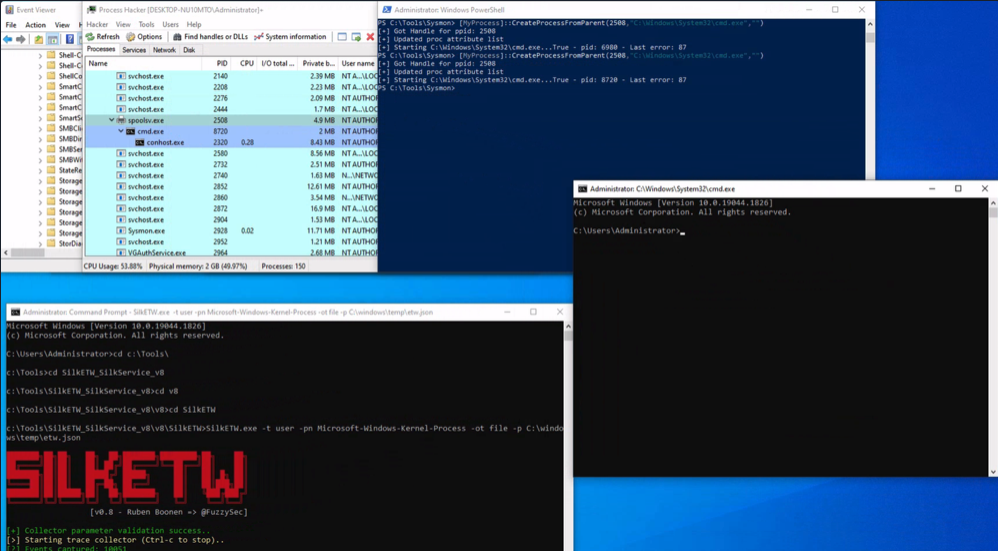

SilkETW.exe -t user -pn Microsoft-Windows-Kernel-Process -ot file -p C:\windows\temp\etw.json

Seatbelt

  • attackers now employ BYOL = Bring Your Own Land instead of just Living Off The Land because defenses for this has gotten much better
  • C# executables such as Seatbelt can now be loaded from memory by attackers to gain situational awareness

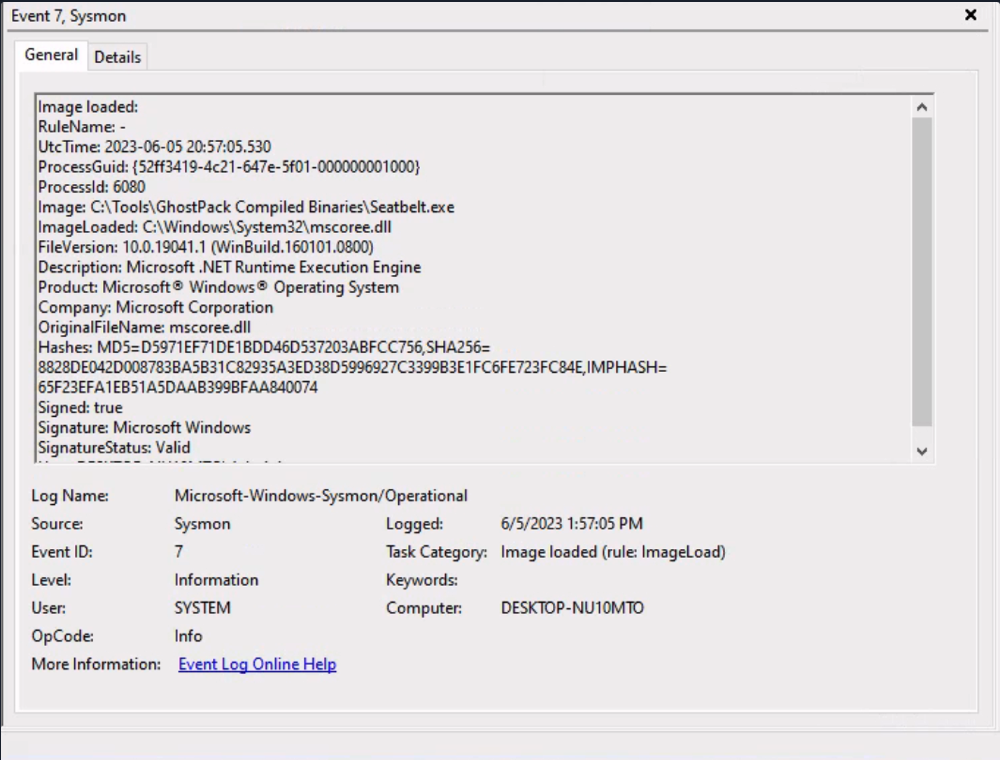

  • When executables such as Seatbelt are ran, they will generate Event ID = 7 in sysmon
  • The problem with Sysmon alone is that it generates enormous volume and lacks depth
  • Use Microsoft-Windows-DotNETRuntime provider with SilkETW to get more visibility into the .NET execution

Simulation with Seatbelt and SilkETW

  • make sure sysmon is configured to exclude Event ID 7
  • in powershell, run Seatbelt executable

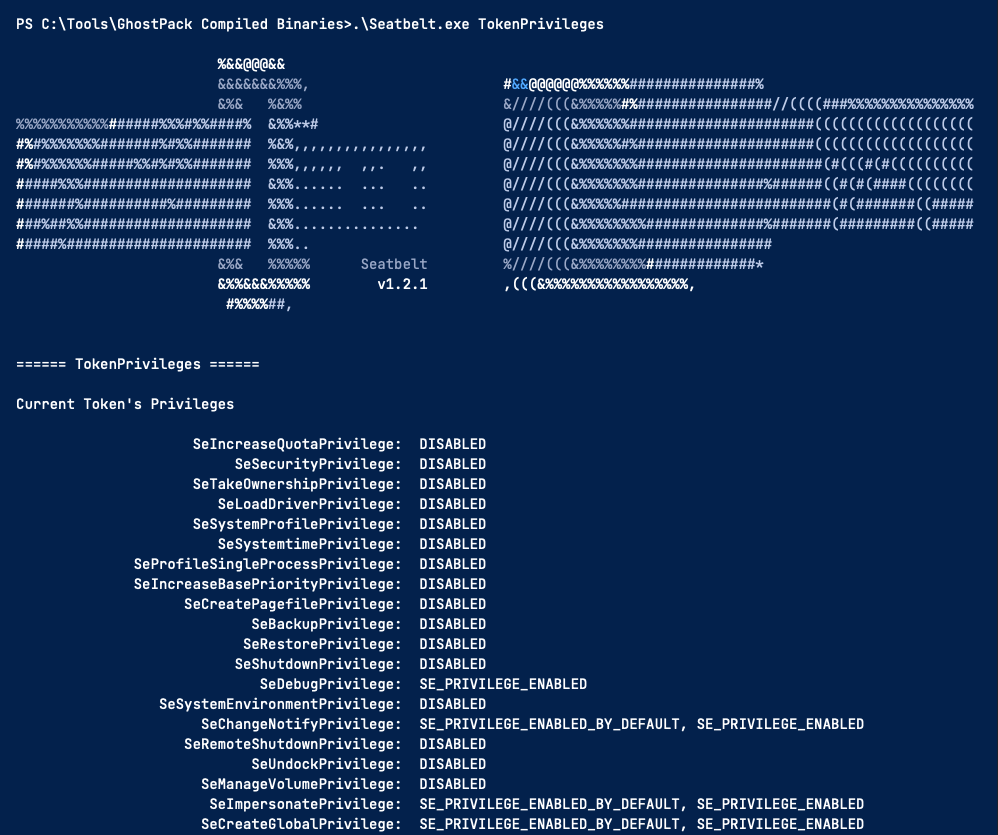

.\Seatbelt.exe TokenPrivileges

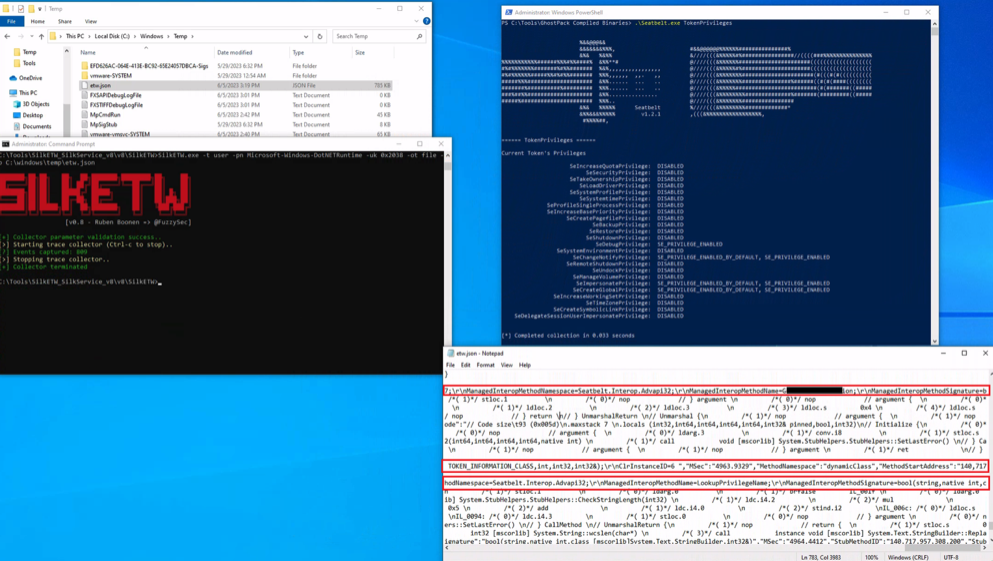

SilkETW.exe -t user -pn Microsoft-Windows-DotNETRuntime -uk 0x2038 -ot file -p C:\windows\temp\etw.json

  • the -uk 0x2038 parameter filters for specific event types:

    • JitKeyword: Just-In-Time compilation events showing which methods are being compiled
    • InteropKeyword: When managed code calls unmanaged APIs
    • LoaderKeyword: Assembly loading details
    • NGenKeyword: Precompiled assembly usage
